Spesifikasi

• Keyboard: 61 keys (velocity sensitive), Touch Control: Soft (light), medium (standard), hard (heavier), fixed
• Sound Generator: Stereo PCM sound generator
• Maximum Polyphony: 64 voices
• Sounds: Over 702 sounds, 41 drum kits (including GM compatible sound sets)
• Keyboard Sets: More than 170 sets
• Effects: Accompaniment part - 2 stereo digital multi-effects, Keyboard part - 2 stereo digital multi-effects, 34 types (148 variations)
• Styles: More than 280 presets, 2 intros, 4 variations, 2 fills, 1 count in/break, 2 endings, synchro start/stop, tap tempo
• Music Styles: 64 styles
• Demo Songs: 18 songs
• Audio Player: MP3, WAV (44.1 kHz)
• Sequencer: Record - Real-time recording (Style mode), maximum of 999 songs (approx. 100,000 notes), 12 tracks (4 keyboard parts + 8 auto accompaniment parts), original format (can convert to SMF0), Playback - Supports song play (playing on the keyboard during song playback), SMF (Standard MIDI File) format 0 or 1
• Scales: 11 types (including user scale)
• Controls: Power button, VOLUME knob, joystick, STYLE/[MUSIC STYLE] button, SONG/[DEMO SONG] button, KEYBOARD SET/[STS] button, GRAND PIANO button, each button in the PART MUTE/[SOUND SELECT] section, SETTING/[EFFECT] button, MEDIA button, SPEAKER EQ/[SPEAKER OFF] button, [SHIFT] button, ENSEMBLE button, SPLIT button, METRONOME/[BEAT SELECT] button, TAP TEMPO/[TEMPO LOCK] button, TRANSPOSE b and #/[OCTAVE –/+] buttons, dial, CATEGORY button, value buttons, + button, - button, each button in the STYLE/SONG section, each button in the SET LIST section
• Set lists: 10 banks × 4
• Metronome: Tempo, beat, volume
• Tempo: 30–240
• Key Transpose: C (-12) to C (0) to C (+12)
• Tuning: 427.5–452.9 Hz

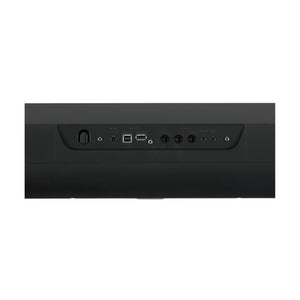

• Input/Output: Foot controller jack - 6.3 mm (1/4") phone jack, EK-50 does not support the half-pedaling, AUDIO IN jack - 3.5 (1/8") mm stereo mini-phone jack, OUTPUT L/ MONO, R jacks - 6.3 mm (1/4") phone jack (unbalanced), Headphones jack - 3.5 mm (1/8") stereo mini-phone jack, USB A port - TO DEVICE port for connecting USB flash memory and controllers, USB B port - TO HOST port for connecting personal computers
• Speaker Amplification: 10 W × 2
• Speakers: 120 mm (4.72") double-cone speakers × 2 (bass reflex box-type)
• Speaker EQ: 8 types
• MIDI: USB MIDI
• Display: Custom LCD with backlighting
• Power supply: AC adapter (included) or AA batteries (alkaline dry cells or nickel-metal hydride batteries) × 8 (sold separately)
• Battery life: When using alkaline dry cells: approx. 7 hours
• Power Consumption: 8 W (0.1 W on standby)
• Dimensions (W x D x H): 994 mm × 392 mm × 132 mm/39.13" × 15.43" × 5.20" (not including sheet music stand), Height with sheet music stand attached: 329 mm/12.95"
• Weight: 7.5 kg/16.53 lbs. (not including sheet music stand or batteries)
• Included items: AC adapter, sheet music stand
