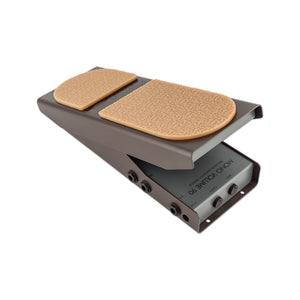

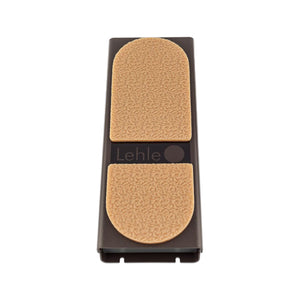

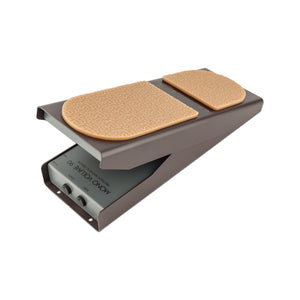

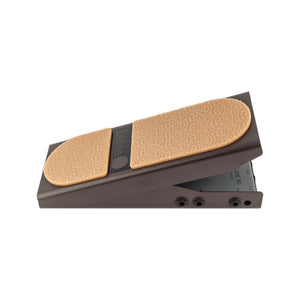

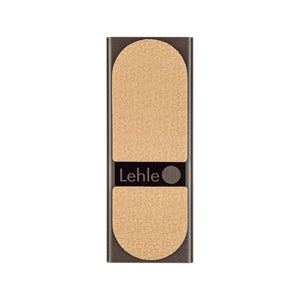

Lehle Mono Volume 90 Guitar Pedal
(Termasuk Pajak & Biaya Pengiriman)
The Lehle Mono Volume 90 is a volume pedal equipped with a precise magnetic sensor enabling it to operate almost wear-free. This sensor uses the Hall effect, named after Edwin Hall, to measure the strength of magnetic fields. In the Lehle Mono Volume 90, the Hall sensor, which is made in Germany, is accurately calibrated to the built-in magnet and the control range of the pedal. The pedal moves only the magnet, the distance is measured by the Hall sensor which controls a VCA.
A premium Blackmer® VCA (= Voltage Controlled Amplifier) from the United States replaces the mechanical potentiometer. The principle of the voltage-controlled amplifier is based on the fact that gain can be varied by the control voltage coming from the Hall sensor. This technique allows to operate more precisely than conventional mechanical potentiometers or optical sensors used by the standard volume pedals. In addition the potentiometer-typical noise and the complicated adjustment are eliminated.
Features:
- Internal voltage doubler to 18V
- Adjustable gain
- Magnetic Sensor
- Premium Blackmer® VCA
- Frequency Range: 35 Hz - 125 kHz (-3 / +0,4 dB)
- Total Harmonic Distortion: < 0.05 % (-10 dBu, 1 kHz)
- Input Impedance: 2 MΩ
- Output Impedance: 500 Ω
- Max. Level: 3 V RMS / 11.8 dBu (at 12 V input voltage)
- Max. Gain: 12 dB
- Current Consumption: 50 mA
- Supply Voltage: 9 - 15 V DC
- Overall Height: 66 mm / 2.6"
- Width: 100 mm / 3.9"
- Length: 260 mm / 10.2"
- Weight: 1480 g
