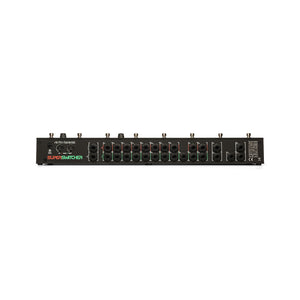

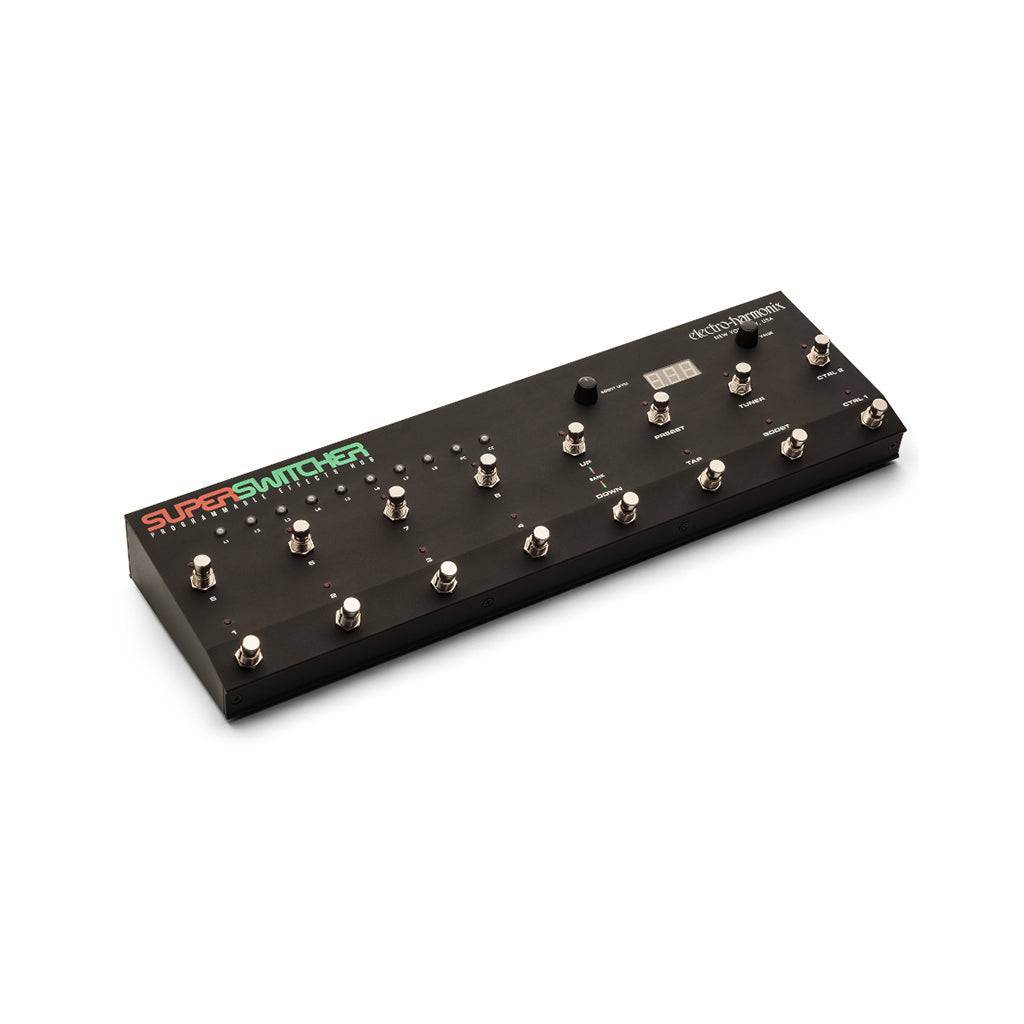

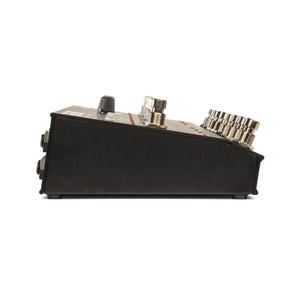

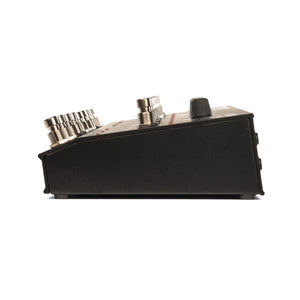

Electro-Harmonix Super Switcher Programmable Effects Hub

The Super Switcher, as its name implies, offers a powerful solution for players who are tired of “tap dancing” around their pedalboard. In effect, it moves all of your pedals to your pedalboard’s front row while delivering control of them with one button push. The result is that it puts the player back in control of an unruly pedalboard!

It’s also perfect for any guitarist using the “four-cable method” because it makes it easy to properly route effects that should go in front of an amp and those that are best in the effects loop.

Features:

• Extensive I/O maximizes flexibility and control.
• Features mono and stereo send/return, insert send/return and mono/stereo out
• Equipped with tuner and tap tempo outs, MIDI In & Out and more.
• Features eight mechanical-relay controlled, true bypass loops.
• Provides 128 presets: 16 banks with 8 presets each.
• Tap footswitch sets the BPM. The Super Switcher can be configured to send/receive MIDI clock and send tap signals to the output. BPM can be global or per preset.
• Tuner footswitch sends the input signal to the tuner out and cuts off the signal from any loops or output.
• Boost footswitch engages a knob adjustable, output gain Boost on both the left and right channels.
• EHX 9.6VDC-200mA power supply included
• Current Draw: 150mA @ 9VDC
• Dimensions: 483mm (19") W x 153mm (6") L x 64mm (2.5") H
