Eventide PowerMini Expansion Kit

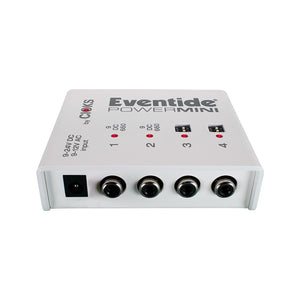

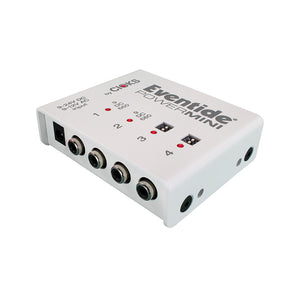

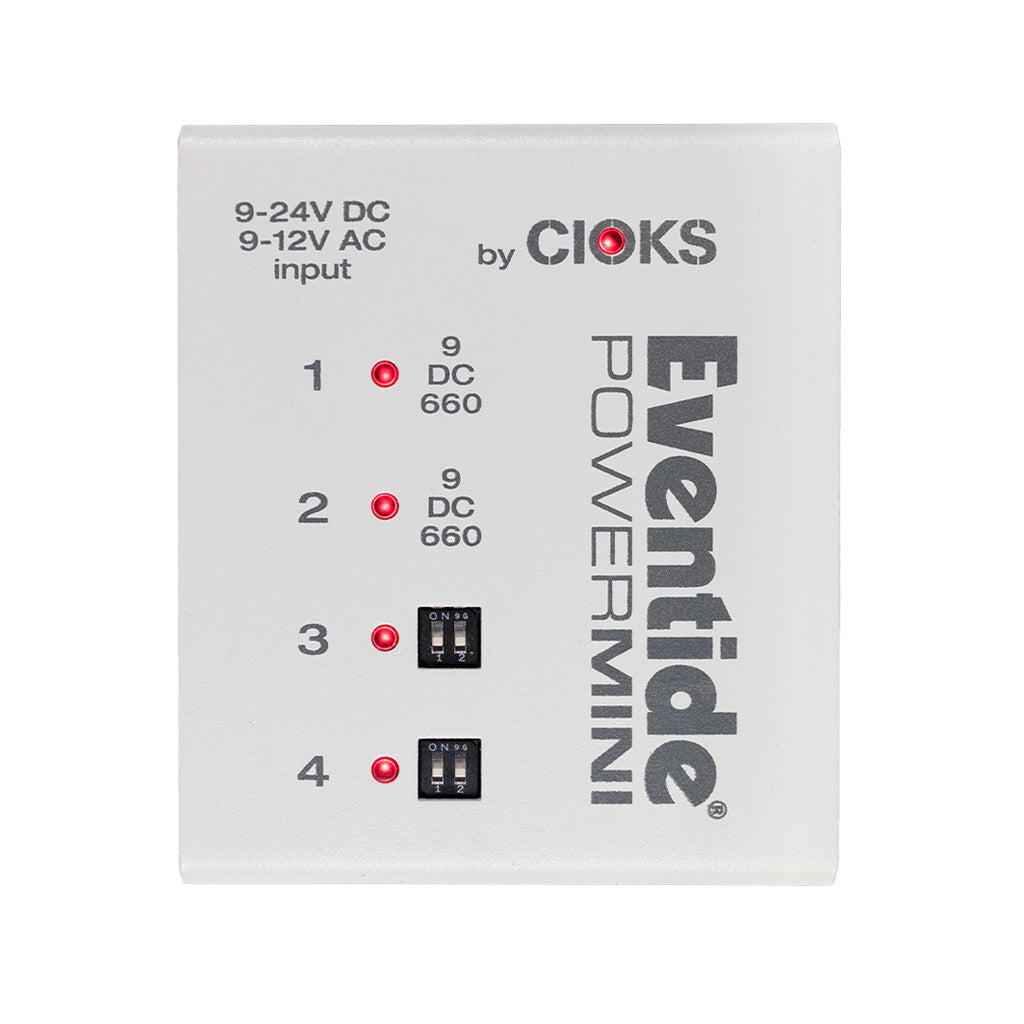

The PowerMini is a super-compact, isolated power supply for small pedalboards that ensures your pedals achieve maximum fidelity. The PowerMini provides four outputs at 600 mA (with two outputs switchable to 9, 12, 15, or 18V). The PowerMini EXP is also available, making it the perfect companion for the PowerMax. Simply connect the PowerMini EXP to your PowerMax via a 24V outlet. Each PowerMini comes with seven flexible cables compatible with most pedal brands.

Its features:

• Comes with 24V DC Link cable, black, 50cm (EIAJ to red 5.5/2.1mm center positive DC plug)
• Mounting hardware (2 screws and a hex key)
• Product sheet (drill guide)
• Flex & DC Link cable guide
• 7 Flex Cables: 2 x 1030 – black, 30cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type) / 2 x 1050 – black, 50cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type) / 2 x 4050 – green, 50cm, center positive, type 4 (Eventide all H9s, TimeFactor, ModFactor, PitchFactor & Space) / 1 x 1533 – 3-way daisy chain, black, 50-30-30cm, center negative, type 1 (BOSS type)

Specification:

• Main Input: 9-24V DC, 9-12V AC
• OutletsOutput: Outley 1-2 (9V DC / 660mA), Outlets 3-4 (9, 12, 15, 18V DC / 660mA)
