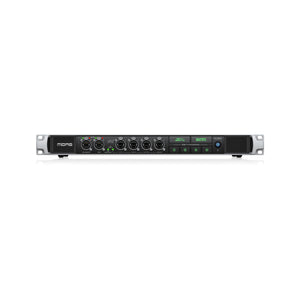

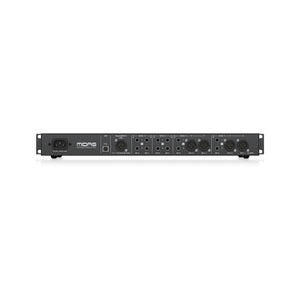

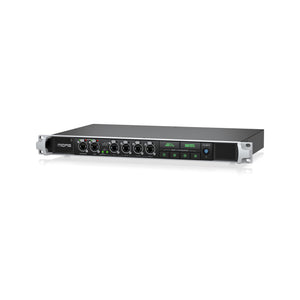

Midas HUB4 Monitor System Hub with 4 PoE Ports for Personal Mixers

The Midas HUB4 is a multi-tool in your stage rack that provides analog and digital outputs for a variety of applications. The HUB4 can supply up to four DP48 personal monitor mixers with PoE (Power over Ethernet) and 48 channels of 24-bit/48 kHz audio. The HUB4 also collects 48 channels of upstream audio and routes this audio to the FOH console, either from a stage box connected to the AES50-B (THRU) port or 8 return channels from each of Ports 1-4.

Its features:

• Personal monitoring system hub with PoE remote powering for up to 4 DP48 personal mixers and compatible stage boxes
• AES50 IN and THRU ports for cascading hubs or stage boxes with 48 bidirectional channels at 48/44.1 kHz
• 16 balanced analogue outputs for sending 4x2 personal stereo mixes to IEM transmitters in the side rack
• Channel naming and Group assignments can be distributed from compatible M32 consoles
• Midas DL8 Stage Boxes can be connected and powered from ports 1-4
• Personal mix outputs can be monitored via AES50 upstream to connected consoles
• Supports remote control forwarding of a DP48 personal mixer from another DP48
• Front panel buttons for sending signals to analogue output groups 1-4, for StageCONNECT and for AES50-A upstream
• StageCONNECT output with phantom power for connecting other StageCONNECT devices, sharing 32-channel audio, 24-Bit uncompressed PCM, 44.1/48 kHz, at sub-millisecond latency, over any standard XLR microphone or DMX cable
• Remote operation via shielded CAT5e cable up to 260 ft / 80 m length recommended
• Features Neutrik etherCON* AES50 network ports
• Rugged 1U chassis for durability in portable applications
• Auto-ranging universal switch-mode power supply
• Designed and engineered in the UK
